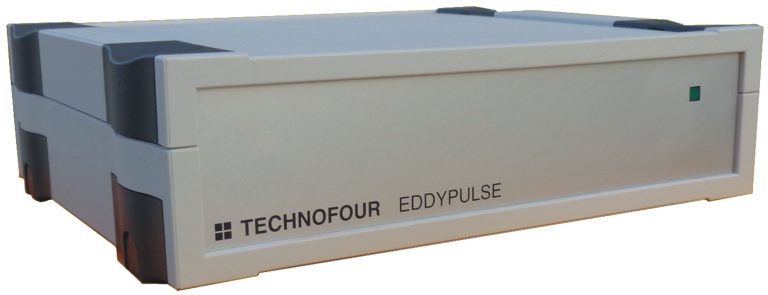

Portable eddy current advanced compact instrument for non-destructive Pulsed Eddy Current inspection.
Portable eddy current advanced compact instrument for non-destructive Pulsed Eddy Current inspection.
Overview
EddyPulse is supplied with Smart sensors that automatically limit drive currents depending on the pulse width and pulse voltage. The instrument works with three kinds of pickups: Coil, Hall effect or GMR. A reference signal – e.g. that from a defect-free location – can be stored, and subsequently used to show amplified difference signal, simplifying signal analysis. Important features from a signal such as time to peak, time to zero cross, time to cross each of the two gates – upwards or downwards – are available for analysis. A cursor reads out amplitude at any time delay location on the X-axis.
Applications
- EddyPulse has a drive coil in the probe which is excited by a pulse instead of sinusoidal voltages as in conventional eddy current instruments.
- A square pulse is rich in harmonics and offers many of the advantages of a multi-frequency instrument at a much lower cost.
- This is most often used to assess corrosion under insulation in a plant.
Features
- Variable Pulse Width
- Variable Pulse Repetition Rate
- Variable Pulse Amplitude
- Smart Sensor auto-limits current draw
- Compatible with Coil / GMR / Hall sensors
- Variable Low-pass filter
- Automatic Balance
- On-screen reference
- Difference signal display
- Two adjustable thresholds
- 16-bit data
- Fast 1 MSPS sampling rate
- USB 2.0 interface with a Windows
PC/laptop/tablet - Compact form factor
- Cursor readout of time and amplitude
- Displays time to peak, time to zero cross or time to cross a gate in either direction
- Signal averaging for noisy environments
- Save and recall often used parameters
- Recording and Recall of A-scan snapshots
- Movie recording and playback of all signals
Technical Data
Pulse Repetition Rate 40 to 1000 /sec
Pulse Width 100 microseconds to 10 milliseconds
Pulse Voltage 0, 15, 20, 25 and 30V selectable
Drive Limit 3A Max
Sampling Rate 1 MSPS
Data Resolution 16 Bit
Signal Gain 0 dB to 36 dB in steps of 0.5 dB
Display Range 100 uS to 40 mS
Averaging 1, 2, 4, 8, 16 and 32 A-Scans
Thresholds Two independent with variable width
Feature Extraction Time to peak
Time to zero cross
Time to threshold cross
Low Pass Filter 100 Hz to 300 KHz
Balance Automatic
Sensors Wound Coil, Hall Effect, GMR
Connectivity and control External computer connected over USB 2.0
Features
- Variable Pulse Width
- Variable Pulse Repetition Rate
- Variable Pulse Amplitude
- Smart Sensor auto-limits current draw
- Compatible with Coil / GMR / Hall sensors
- Variable Low-pass filter
- Automatic Balance
- On-screen reference
- Difference signal display
- Two adjustable thresholds
- 16-bit data
- Fast 1 MSPS sampling rate
- USB 2.0 interface with a Windows
PC/laptop/tablet - Compact form factor
- Cursor readout of time and amplitude
- Displays time to peak, time to zero cross or time to cross a gate in either direction
- Signal averaging for noisy environments
- Save and recall often used parameters
- Recording and Recall of A-scan snapshots
- Movie recording and playback of all signals
Technical Data
Pulse Repetition Rate: 40 to 1000 /sec
Pulse Width: 100 microseconds to 10 milliseconds
Pulse Voltage: 0, 15, 20, 25 and 30V selectable
Drive Limit: 3A Max
Sampling Rate: 1 MSPS
Data Resolution: 16 Bit
Signal Gain: 0 dB to 36 dB in steps of 0.5 dB
Display Range: 100 uS to 40 mS
Averaging: 1, 2, 4, 8, 16 and 32 A-Scans
Thresholds: Two independent with variable width
Feature Extraction: Time to peak Ι Time to zero cross Ι Time to threshold cross
Low Pass Filter: 100 Hz to 300 KHz
Balance: Automatic
Sensors: Wound Coil, Hall Effect, GMR
Connectivity and control: External computer connected over USB 2.0
